Linear shooter in pieces

Climber option 3

Climber option 2

Climber option 1

Chassis sorting and planning

Frisbee pickup objectives

Sent from Samsung tablet

Aiming Objectives

Sent from Samsung tablet

Sent from Samsung tablet

Kevin-fearful public speaker transformed

Metal shards everywhere

Noodle crescents

Tilting ideas

Maria Hunter's secret tool cache

We need weight watchers! No electrical or climbing and 115 already!

Aimee explains her aimer

Programmers working on vision tracking

Week 3 Shooter Testing

On Saturday we tested shooters in the street...  good range.  Still fine-tuning to be done...

VIDEO Spitfire now responds to Java!!!

Does Kyle B like his picture taken???

NOOOOO!!!!!!

The Leadscrew works!!!!

Jan 24 talking through the chainsaw

Jan 24 limit switches, motors, and tank drive

Jan 24 wheeled shooter - making more stable

Jan 24 chain saw climber

Jan 24 2-wheeled linear shooter

Jan 24 vertical angle aiming device

Jan 24 wheeled frisbee picker upper

Jan 24 Rotating aiming device

Video of pneumatic slot feeder prototype

Video of one climbing prototype

Moving up the pyramid...

Stephen and Ryler grinding some metal

Programming??? Including a photo of Kyle B!

Mentors at work

Slot feeder

Furry plastic?????

Jan 23 Creating "Fetch"

Calibration of one wheeled shooter

Aiming platform

The linear shooter

Frisbee feeder - next iteration

Chainsaw climber

Double chains to pull up robot with hooks

Hinged tilt for aiming

Attaching a window motor - Aimee left while mentors bickered about what she should do.

Wheel shooter

Still playing with gearing - still aiming for 3000 rpm

Another floor option with wheels

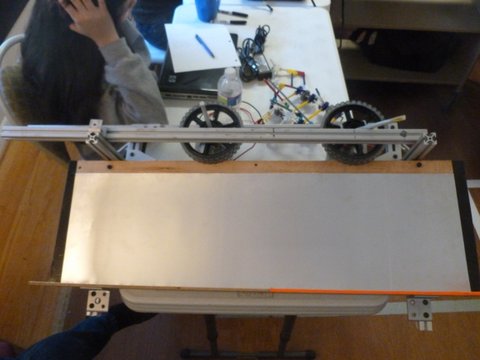

Linear shooter

With a very tachometer....

The chainsaw idea for climbing

Leadscrew aiming mechanism

To put shooter on top.

Testing shooter motors

Trying to gear it up, switching motors, trying 2 cims etc. - trying to get from 2200 to 3000 rpm to shoot across the field.

Building the frame for a climber

Need a lead screw to pull hooks up a track to lift the robot.

Working on the floor picker upper

Balancing between length and angle.

Trying to figure out that climbing challenge...

Week 2 Pre Teardown Build

Aimee explains the feeding of the robot...a wall will move
up and down to allow only 1 of 4 discs through to the shooter.

What does the robot do at the end of week 2?

Week 2 Pre Teardown Build Robot

Arc shooter prototype 1 with larger wheel

Linear shooter - not quite ready to test

Linear shooter explanation

More Pre Teardown Build discussion

K'nex model built by Kyle M to illustrate one of the climbing
models being discussed by team members.  There are prototypes in
process of a 'shimmy climber' and 4 arm climber, and a 2 arm climber.
